PoE PoE+應用 1G Base-T 單孔RJ45連接器

56F-14XX

  • 磁性設計支援每種PHY。
  • 符合IEEE 802.3af標準，350mA。
  • 符合IEEE 802.3at標準，720mA。
  • 包括350 µH最小OCL，8mA偏置電流。
  • 根據IEEE 802.3要求，最小為1500Vrms隔離。
  • 設計用於通過UTP-5電纜進行100/1000 base傳輸。
  • 尺寸與RJ45模塊插孔相同，可節省PCB板空間。
  • 通過UL 60950-1 安規認證。


Electrical Specifications@25°C; Operating Temperature -40°C to 85°C


Part NumberTurns Ratio
(± 5%)		EMI
Fingers		LED
(L/R)		Insertion Loss
(dB TYP)		Return Loss
(dB min @100Ω)
1-100
MHz		1-10
MHz		30
MHz		60-80
MHz
56F-1417GYDZ2NL1CT: 1CTYESG/Y-1.0-20-16-12



Part NumberCrosstalk
(dB TYP)		Common Mode Rejection
(dB TYP)		PoE CurrentHipot
(Vmin)
1-40
MHz		30-60
MHz		60-100
MHz		1-50
MHz		50-130
MHz
56F-1417GYDZ2NL-40-35-30-30-20720mA2250

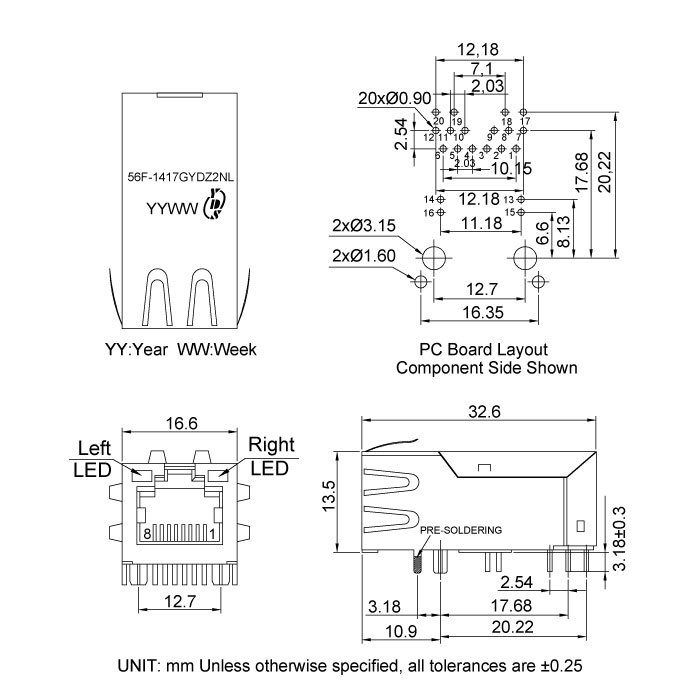

Dimension



Certification




Use of Data
