2埠 4埠 10/100/1000 Base-T RJ45 磁性連接器

6XF

  • RJ45 1xN，Tab朝下，8 pin和10 pin，內部帶磁性。
  • 1x2與1x4可選擇，用於10 / 100 / 1000 Base-TX。
  • 可選用帶LED和不帶LED。
  • 適用於CAT 5 和 6 快速以太網電纜或更好的UTP。
  • 內部磁性對HI-POT和功能進行100%電氣測試。
  • 350uH最小OCL，8mA偏置電流。
  • 根據IEEE 802.3要求，最小為2250VDC隔離。
  • 通過UL 60950-1 安規認證。


Electrical Specifications@25°C; Operating Temperature 0°C to 70°C



Part NumberTurns Ratio
(± 5%)		TAB OptionLEDsInsertion Loss
(dB TYP)		Return Loss
(dB TYP@100Ω ± 15Ω)
TXRXL/R0.3-100
MHz		1-10
MHz		30
MHz		60-80
MHz
62F-1204GYD2NL1CT: 1CT1CT: 1CTDOWNG/Y-1.2-18-16-12
64F-1204GYD2NL1CT: 1CT1CT: 1CTDOWNG/Y-1.2-18-16-12



Part NumberCrosstalk
(dB TYP)		Common Mode Rejection
(dB TYP)		Hipot
(VDC)
1-10
MHz		30-60
MHz		60-100
MHz		1-50
MHz		50-130
MHz
62F-1204GYD2NL-40-35-30-30-202250
64F-1204GYD2NL-40-35-30-30-202250

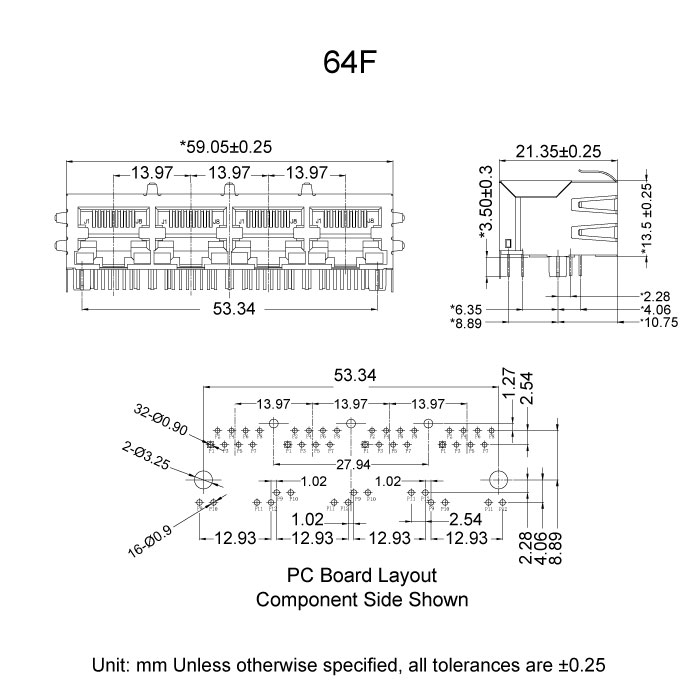

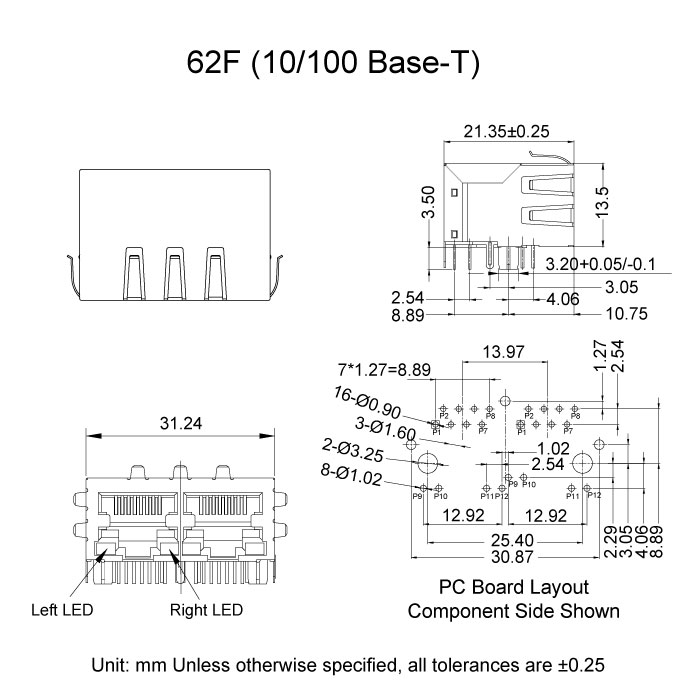

Dimension




Certification
