2埠 10/100/1000 Base-T 雙USB集成RJ45變壓器模組

45F

  • LAN接口適用於10/100/1000Base-TX應用。
  • RJ45 / USB堆疊設計節省PCB板面。
  • USB模塊符合USB 2.0標準並且符合CAT5 快速以太網產業性能標準。
  • 內部磁性對HI-POT和功能進行100%電氣測試。
  • 符合IEEE 802.3和ANSI X3.263標準,包括350 µH最小OCL,8mA偏置電流。
  • 通過UL 60950-1 安規認證。


Electrical Specifications@25°C; Operating Temperature 0°C to 70°C



Part NumberData RateTurns RatioLEDsInsertion Loss
(dB MAX)
Return Loss
(dB MIN)
100Ω ± 15Ω
TXRXL/R1-100
MHz
1-30
MHz
30-60
MHz
60-80
MHz
45F-10102DYD2NL10 / 1001CT: 11CT: 1CTG-O/Y-1.0-18-16-12
45F-10202GDD2NL10 / 100 / 10001CT: 11CT: 1G/G-O-1.0-18-16-12



Part NumberCrosstalk
(dB TYP)
Common Mode Rejection
(dB TYP)
Hipot
(Vrms)
1-10
MHz
32-60
MHz
60-100
MHz
1-50
MHz
50-100
 MHz
@ 60Hz
45F-10102DYD2NL-40-35-30-30-201500
45F-10202GDD2NL-40-40-35-30-251500

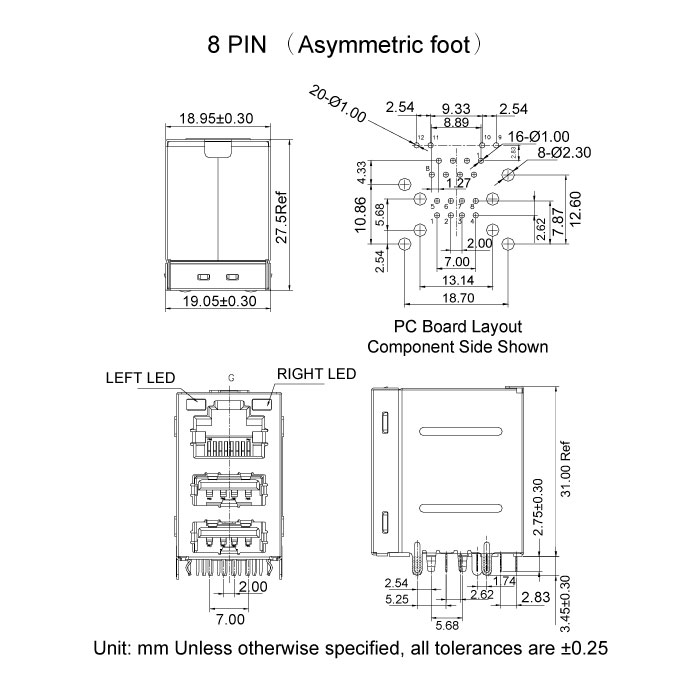

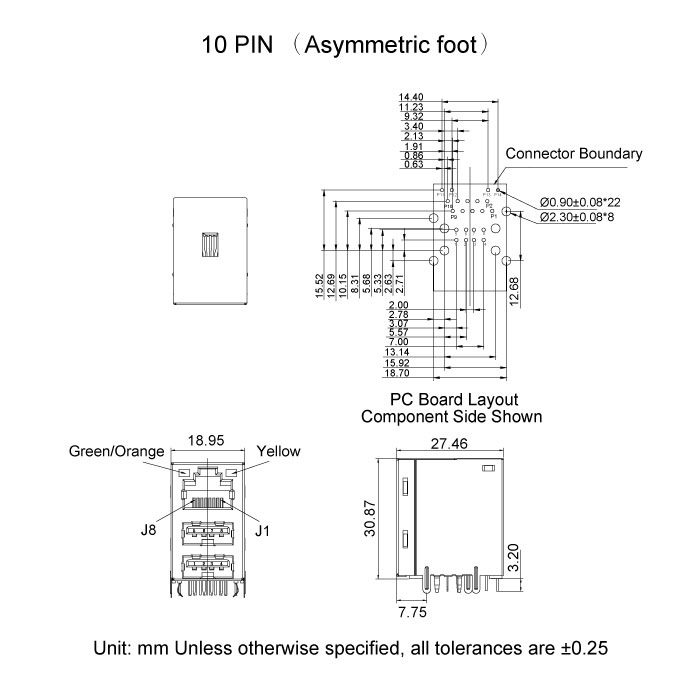

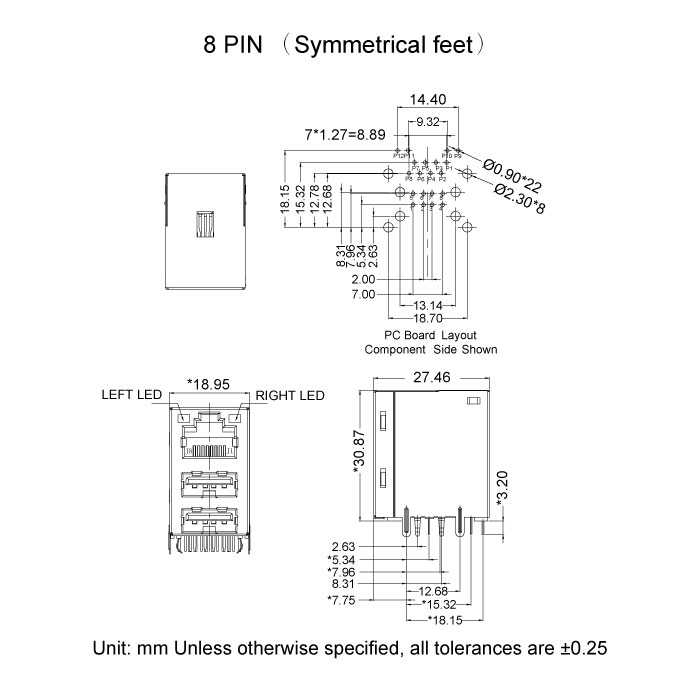

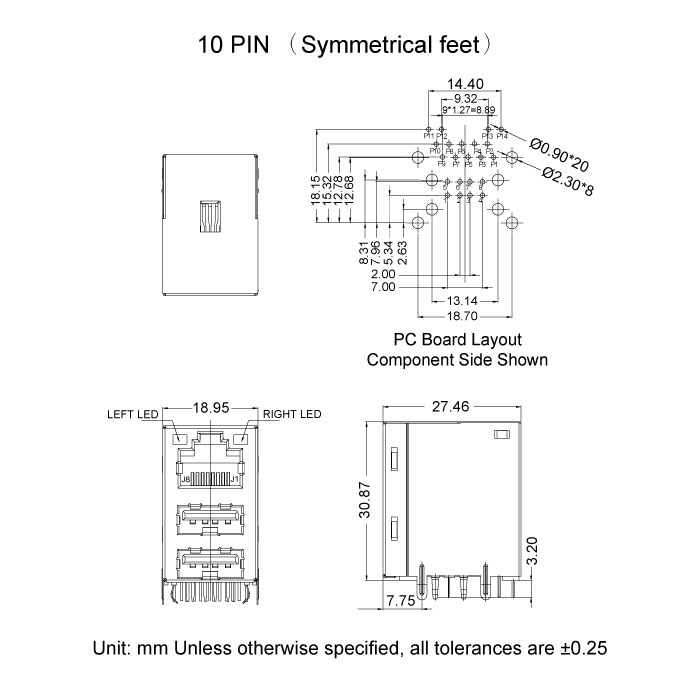

Dimension




Certification
