單埠 5G Base-T RJ45 連接器

56F(5G)

  • 1x1 Tab朝上,長1",RJ45帶內部磁性。
  • 12 pin信號引腳版本可選用。
  • 可選用帶LED。
  • 適用於CAT 5 和 6 快速以太網電纜或更好的UTP。
  • 內部磁性對HI-POT和功能進行100%電氣測試。


Electrical Specifications@25°C; Operating Temperature 0°C to 70°C



Part NumberTurns Ratio
(±3%)
LEDsInsertion Loss
(dB MAX)
Return Loss
(dB MIN)
L/R1-125
MHz
125-250
MHz
1-40
MHz
40-250
MHz
56F-3001GYD2NL1CT: 1CTG/Y-1.0-1.5--20-20+15log10(f/40MHz)



Part NumberCrosstalk
(dB TYP)
CDMR
(dB TYP)
CMR
(dB TYP)
Hipot
(VDC)
1-125
MHz
125-250
MHz
10-250
MHz
30-250
MHz
@60Hz
56F-3001GYD2NL-30-25-45+f/35-302250

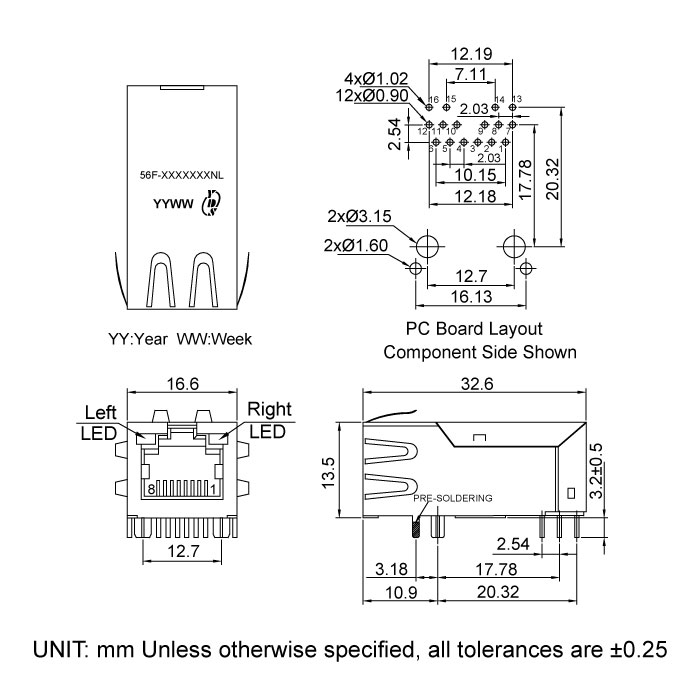

Dimension



Certification
